• Basic Payment Transaction Workflow: Efficiently handles standard payment transactions with ease.
• Payment Method-Specific Configurations: Enables customization tailored to different payment methods for enhanced flexibility.
• Customer Customization: Offers options to personalize the payment experience based on customer preferences.
• Supported Payment Methods: Supports a comprehensive range of payment methods, including major cards like American Express, Diners Club, Discover, Mastercard, Visa, and Maestro, as well as the PostFinance Card provided by Datatrans. Additionally, the plugin covers other popular options such as AirPlus, UnionPay, JCB, Sofort, Twint, and SwissPass, ensuring broad compatibility with customer needs.
• Important Notice
  • American Express (Amex) transactions in EUR currency were not authorized during the plugin verification process, and therefore we were unable to test and confirm this payment flow in the Datatrans test environment. This issue appears to be due to limitations within the test setup, and the functionality is expected to work correctly in the production environment with live credentials.
  • Due to technical limitations on the SwissPass side, verification of payments using SwissPass was limited to CHF currency.
• Easy Configuration: Simplifies the integration of additional payment methods supported by Datatrans, ensuring a smooth setup process.

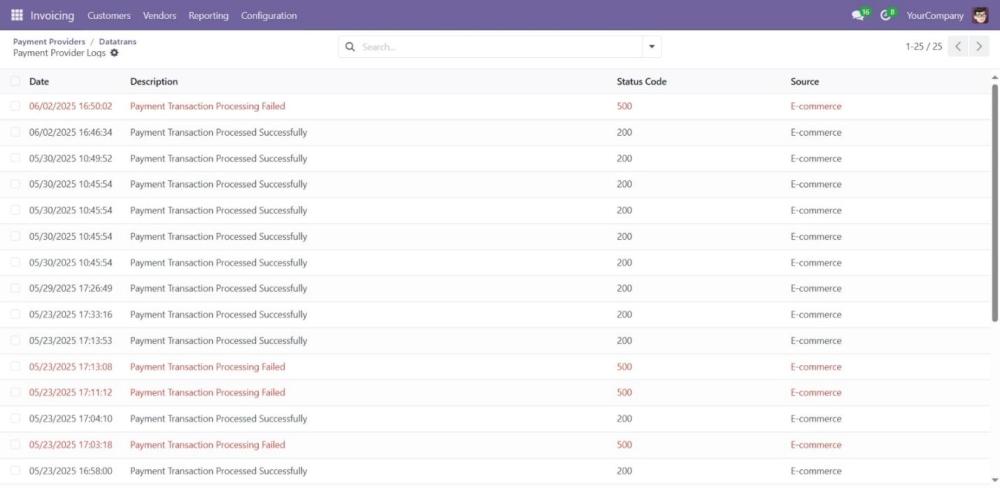

• Transparent Log History: Maintains a clear and detailed transaction log for accountability and tracking purposes.
• Sale Order Payments: Allows payment processing directly through sale orders, streamlining order management.
• Invoice Payments: Supports seamless payment for invoices, enhancing operational efficiency.
• Multi-Website Compatibility: Works across multiple websites, making it ideal for businesses with diverse online presences.
• Datatrans Refund: Facilitates reverse transactions using the original payment method for the specified amount, with detailed records available in the Datatrans Backoffice.

•  Go to the Datatrans Webadmin Tool: Open your browser and visit https://admin.datatrans.com/
• Log in with your Datatrans credentials.

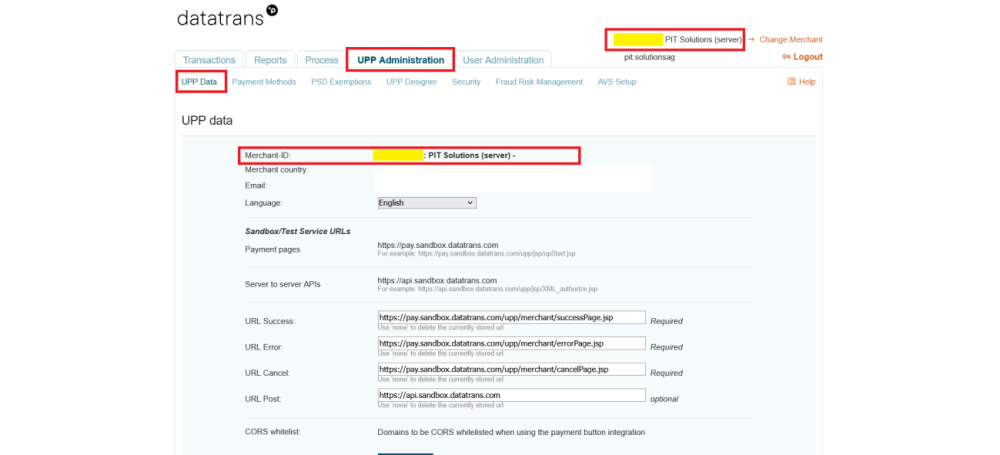

• Once logged in, navigate to the "UPP Administration" section.
• Under "UPP Administration", click on "UPP Data".
• In the UPP Data screen, you will find the Merchant ID listed. This is a unique identifier required for payment integration and configuration.

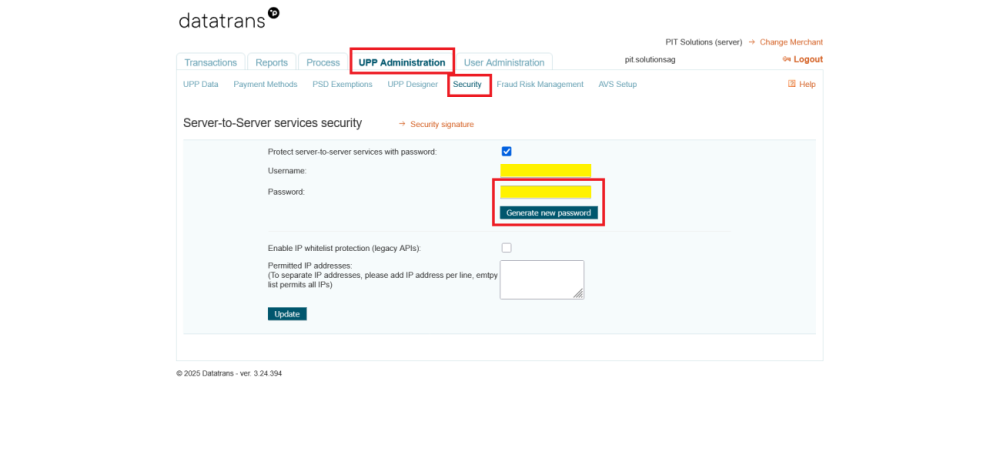

• Navigate to UPP Administration > Security menu.
• In the Security section, locate the API Password field. If it's not already set, you can generate a new password here.

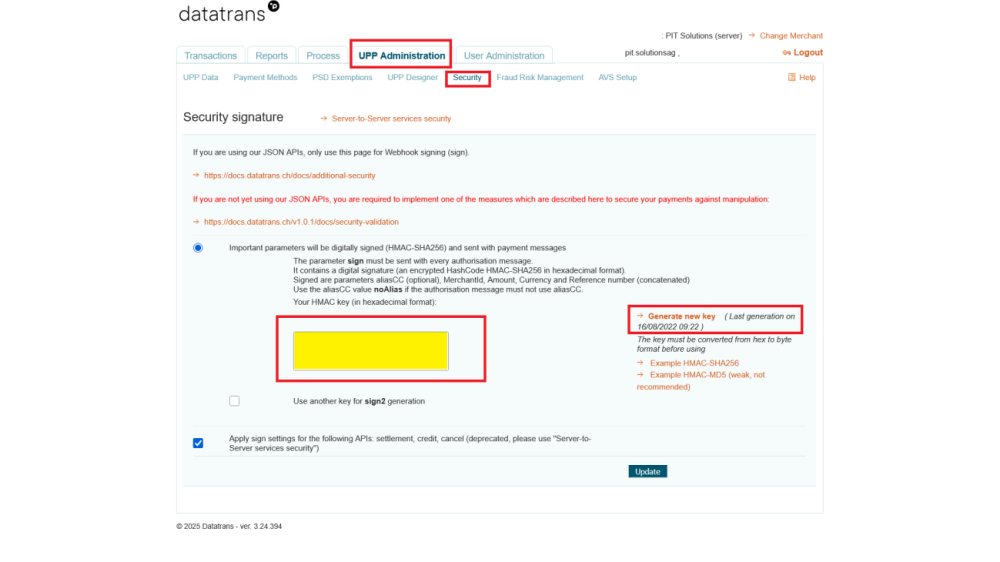

• In the Datatrans Webadmin Tool, go to UPP Administration > Security.
• Click on the Security Signature section.
• Here, you'll see the existing HMAC key or have the option to generate a new one. If you generate a new key, make sure to save it securely.

• Merchant ID: Found at the top-right corner after logging in, or under UPP Administration → UPP Data.
• API Password: Located in UPP Administration → Security, under the Password field.
• Sign (Security Signature): Available in UPP Administration → Security, under the Security Signature section
• Password: This is your Datatrans account login password used to access https://admin.datatrans.com.
• Enable Dynamic Signature: Ensure this option is enabled to allow secure, real-time signature validation for transactions.

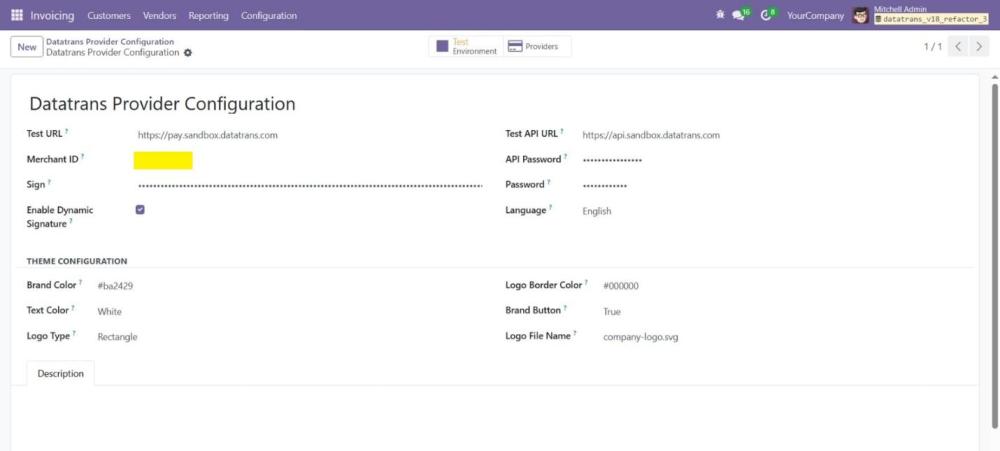

Once these details are entered into the Odoo backend provider configuration, save the settings to complete the integration.

• Brand Colour: Specify the primary colour for your brand in hexadecimal format (e.g., #89b70d). This colour will be used to customize the overall theme of the payment interface.
• Text Colour: Define the colour of the text displayed on the payment page. For example, setting it to White ensures high contrast with the background for better readability.
• Logo Type: Choose the display style of your logo on the payment page. Options include Circle and Rectangle, depending on your preference and logo design.
• Logo Border Colour: Input a hexadecimal code to customize the border colour around the logo. For example, #89b70d matches the brand colour and creates a unified visual theme.
• Brand Button: Customize the colour of buttons displayed on the payment page. For instance, #DFBC2F can be used for a vibrant and eye-catching button colour.
• Logo Name: Enter the name of the logo file to be displayed on the payment page (e.g., company-logo.svg). Ensure the file is uploaded to the Datatrans administration panel for it to appear correctly.

To ensure the Datatrans Payment Provider Plugin functions smoothly, follow these configuration steps:

Initial Setup:

• Configure Datatrans Provider: Begin by entering your Merchant ID, password, and dynamic sign from the Datatrans web administration tool into the Odoo backend.

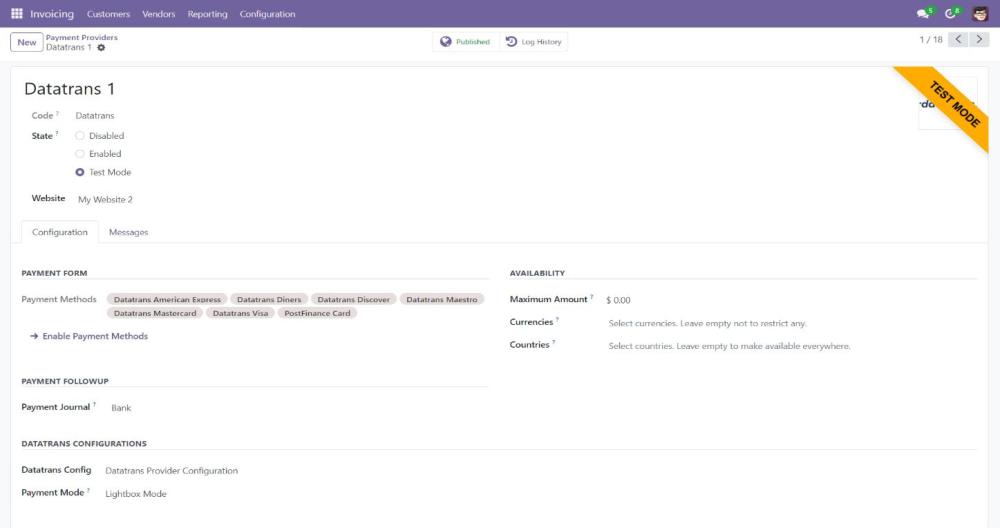

• Activate Provider: Once configured, the Datatrans payment acquirer will be available by default. Activate the provider to make it visible on the shop's payment page.

Step-by-Step Configuration:

Prerequisites:

• Ensure you have access to the Datatrans web administration tool to verify and process transactions. You will need the Merchant ID and Dynamic Sign for backend configuration.
• To process a refund, the associated merchant password must also be properly configured.

Steps:

• Datatrans Configuration:
  • Access the Odoo backend and configure the Datatrans Provider with your Merchant ID, password, and dynamic sign.

• Activate Datatrans Payment Provider:
  • Publish or enable the Datatrans payment provider in your Odoo backend to make it available for use.

• Enter Credentials:
  • In the Datatrans Provider Configuration record in Odoo, add the Datatrans credentials: Merchant ID, Dynamic Sign, and enable Dynamic Signature if required.

• Test Checkout Process:

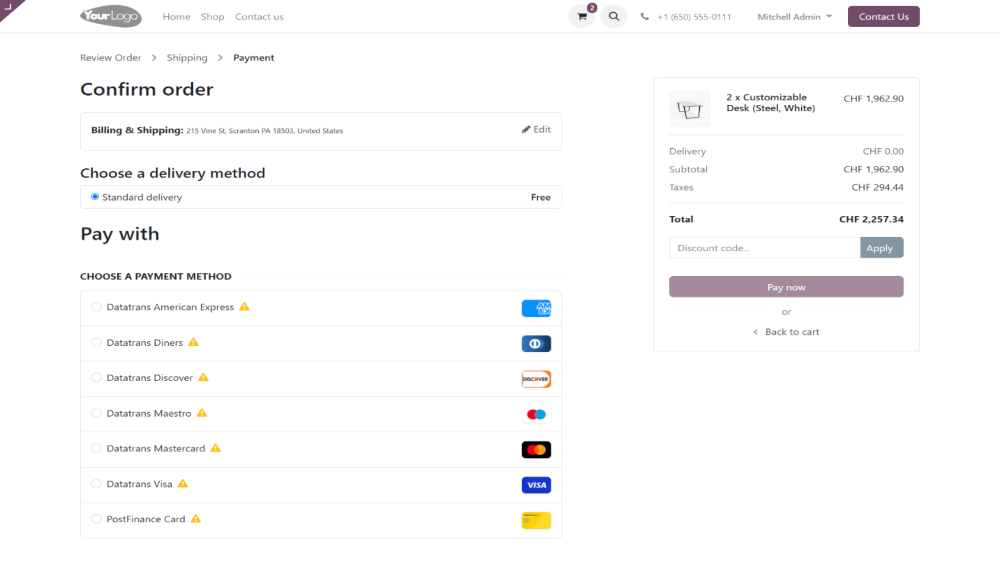

  • Navigate to your e-commerce website, add products to the cart, and proceed to checkout.

• Select Payment Method:
  • Choose the Datatrans payment method at checkout and proceed with the payment.

• Complete Transaction:

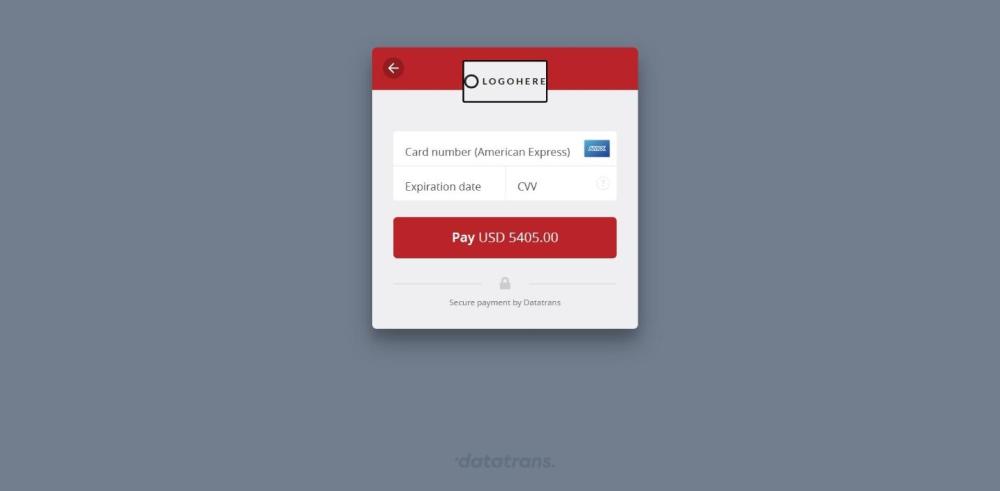

  • On the Datatrans Payment Page, enter the required details to complete the transaction.

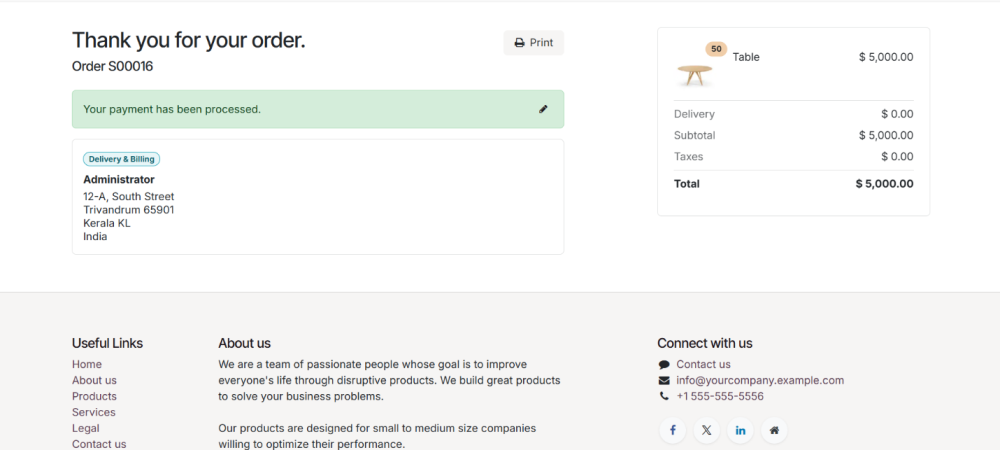

• Order Confirmation:
  • After a successful payment, the order will be placed, and you will be redirected back to your Odoo webshop.

• Processing Refund
  • To initiate a refund, generate a credit note corresponding to the original invoice amount by navigating to the invoice and clicking on Credit Note button.
  • Once the credit note is created, confirm it by clicking the Confirm button. This action will validate the credit note and prepare it for the refund process.

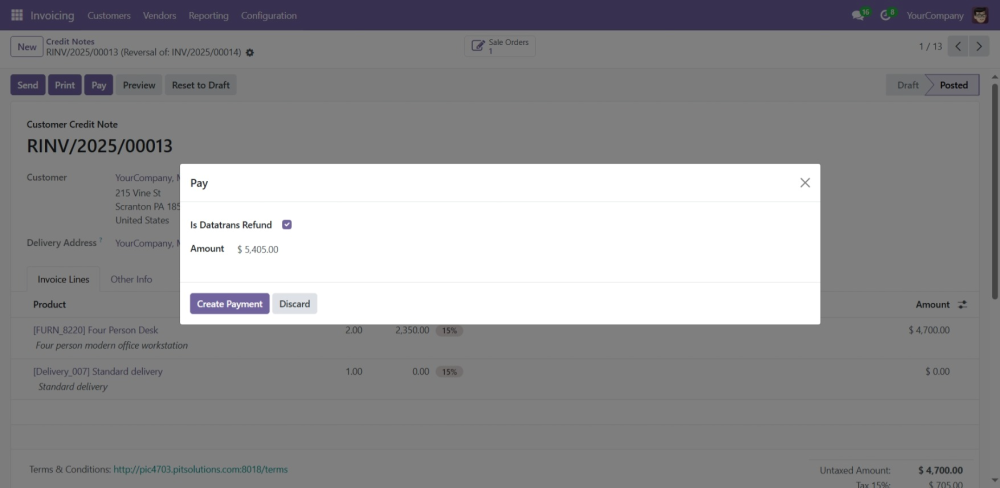

  • Once the credit note is confirmed, click the Pay button to proceed with the refund payment. Here, you may adjust the refund amount, if it does not exceed the original or remaining refundable amount.
  • A transaction for the specified refund amount will be created and can be viewed in the Datatrans back office.

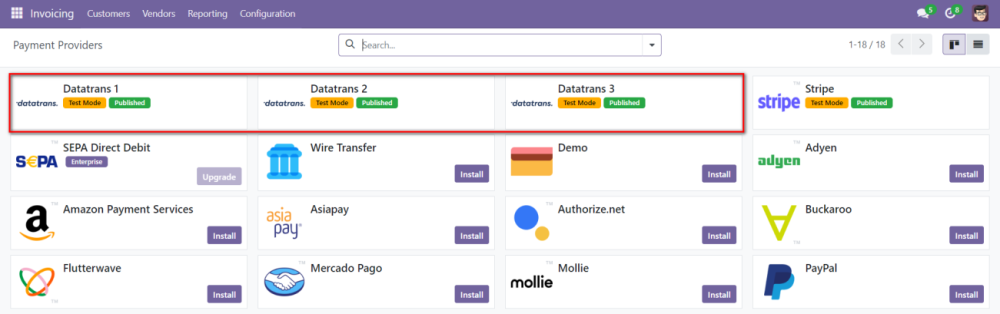

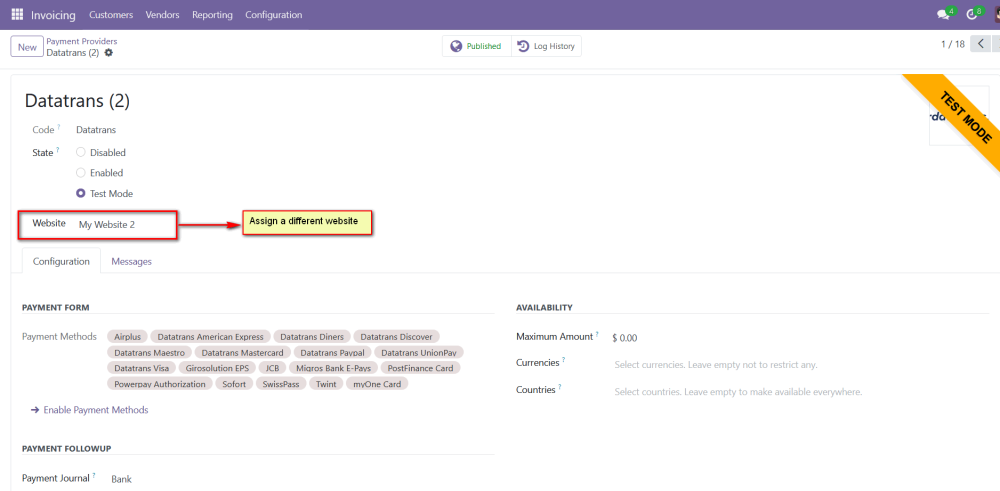

• Multi-Website Configuration:

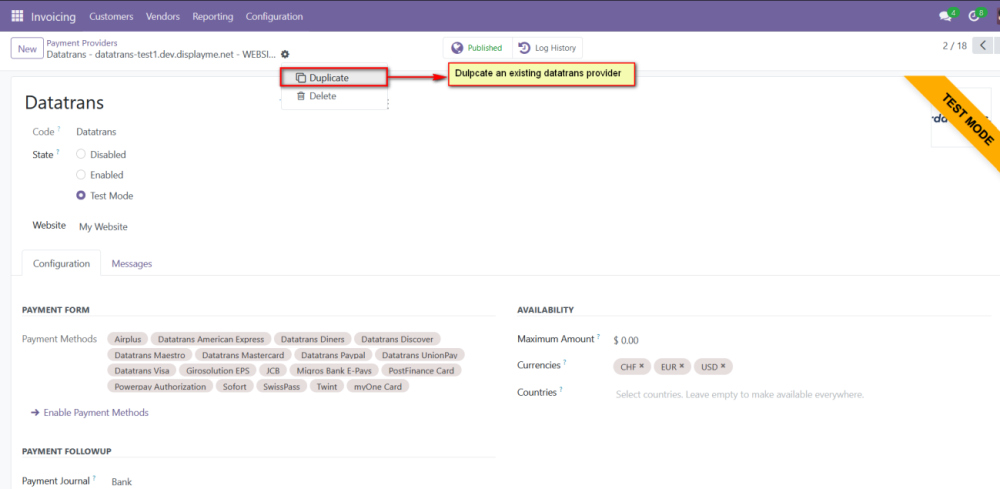

  • To set up Datatrans for multiple websites, duplicate the Datatrans Provider configuration using the Duplicate button.

• Map and Configure Multiple Websites:
  • Map the duplicated Datatrans Provider to the respective websites and enter the appropriate credentials for each.

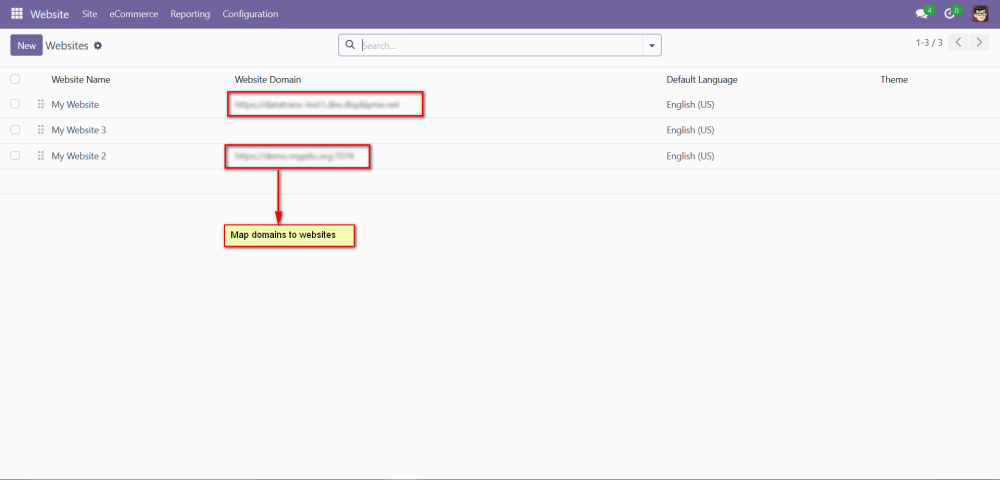

• Set Domain for Websites:
  • Ensure each website’s domain is correctly set up in Odoo for proper multiwebsite functionality

• Technical Requirements: Odoo Sales, Payment, Contact, Invoicing and Website Module.
•  Odoo Community Edition: v19.0, Odoo Enterprise: v19.0

• English and other Datatrans supported languages.

• Version 1.0.0: October 2025
  • Initial release
